OIRAN LIGHT BLINKER CONTROLLER

Customizable lighting with 13 modes to suit your style.

Choose your preferred lighting with 13 modes of illumination and 92 variations of speed.

Variations

3-light Blinker Controller Product No. : OWC-01 3 lines for each side (left & right)

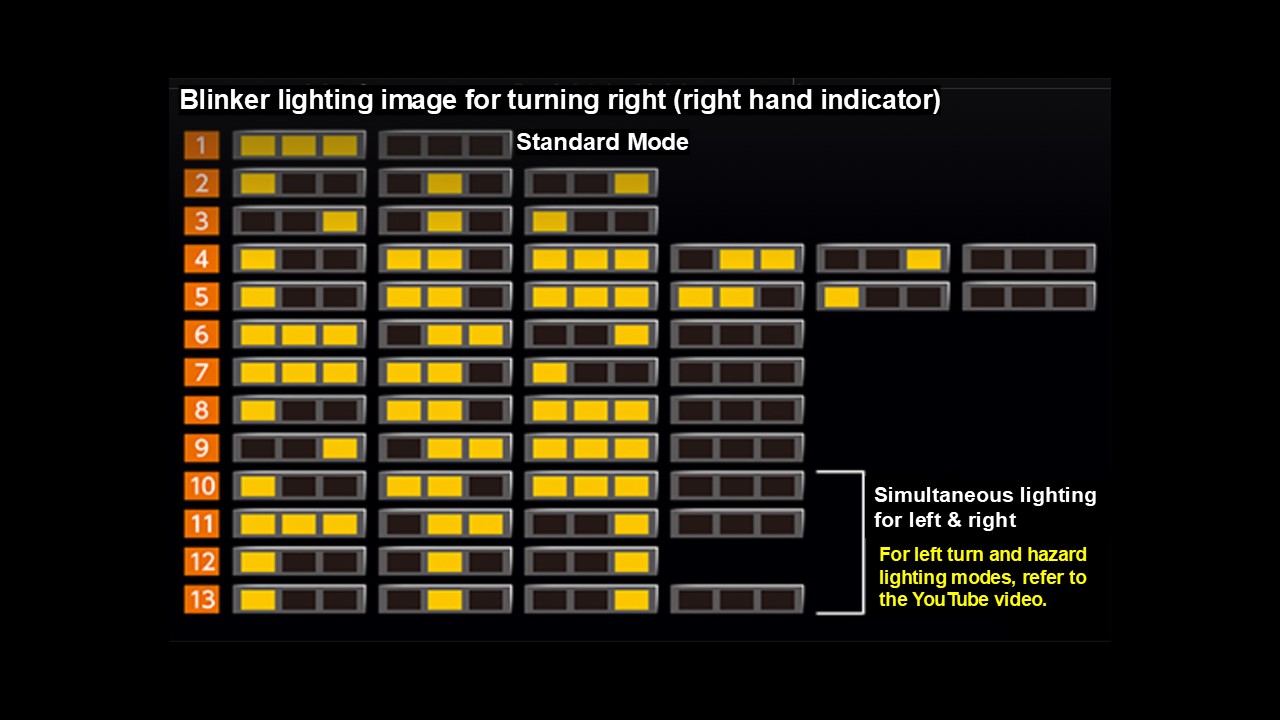

Lighting Image

Features

Choose from 13 modes with the touch of a button

With 13 lighting options available, you can connect 3 lights on each side to create the desired lighting.
Standard lighting mode is also available.

92 speed adjustments (button selectable)

92-step speed adjustment function *4 lighting channels
Press “HIGH” to increase speed and “LOW” to decrease speed.

3 lines for left and right

The controller is equipped with 3 lines on each side to support up to 6 indicator lights.

Specifications

Dimensions: 46mm x 140mm x 27mm (includes mounting stay)

Waterproof Feature

The controller can be installed outside the vehicle due to its waterproof features.

Can be installed near the rear turn signal indicator.

Integrated protection circuit: Equipped with an external fuse to protect the controller in case of overcurrent.

Warranty: This product is not covered by any warranty.

Safety Standards: The 3-light controller may not comply with safety standards if used on public roads in any mode other than Mode 1 (standard mode).

24V/12V specifications: Compatible with a wide range of vehicles, from small to large vehicles.

JAN

Product No.	JAN
OWC-01	4589888759980

Maximum output (bulb type & LED compatibility)

DC24V: 12.5A 300W (up to 12 bulbs of 25W each on left and right sides; up to 50W [2X25W bulbs] can be used per line)

DC12V: 12.5A 150W (up to 6 bulbs of 25W each on left and right; 25W [1X25W bulb] can be used per line)

Note:

This product may activate the bulb out warning light depending on the truck model. To prevent this, you may need to install the 4-resistor kit (Product no. OERO-04N) which is sold separately.

* Depending on the number of units installed, position and installation method, Oiran products may not comply with road safety regulations. Please check with your dealer or mechanic if you are unsure.
